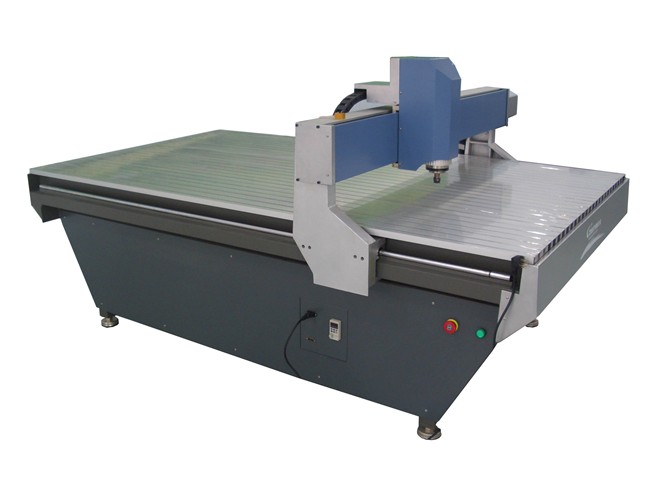

CNC router
1, Woodworking engraver, advanced DSP digital control system,Googol system inside
2, Perfect intellective algorithm; synchronous straight-line and curve-line speed.
3, work with computer directly. the memery is limitless.
4, More powerful Anti-jamming function, can be recovered after power off
5, Partly complementary engrave, makes work more perfectly.
|
Model
|
CTE 8090G
|
|
Table size(mm)
|
900*1270
|
|
X.Y.Z working area
(mm)
|
800*900*90
|
|
Max rapid traverse
(m/min)
|
15m
|
|
Max engraving speed(mm/min)
|
10 m
|
|
Mechanical resolution(mm)
|
0.05
|
|
repeatability resolution(mm)
|
0.05
|
|
Max feeding height(mm)
|
100
|
|
Motor driver
|
Micro - step
|
|
Power consumption/
without spindle(w)
|
300
|
|
Spindle /clamp (KW)
|
1.2 KW/6,3.175
|
|
rotation speed(rpm)
|
600-24000
|
|
controller
|
DSP 100HZ
|
|
Software working
|
WINDOWS98/2000
|
|
interface
|
Serial port (Work with computer directly)
|
|
Protocol
|
3D protocol(HP-GL,G-code)
|
|
Memory storage
|
Limitless
|
|
Operation environment
|
temperature:+5°C~+35°C;relative humidity:30%-75%
|
|
Power voltage
|
AC220V±10% 50HZ
|
|
Weight(KG)
|
260
|
|
Dimension(W*D*H/MM)
|
1405*1151*1200
|
