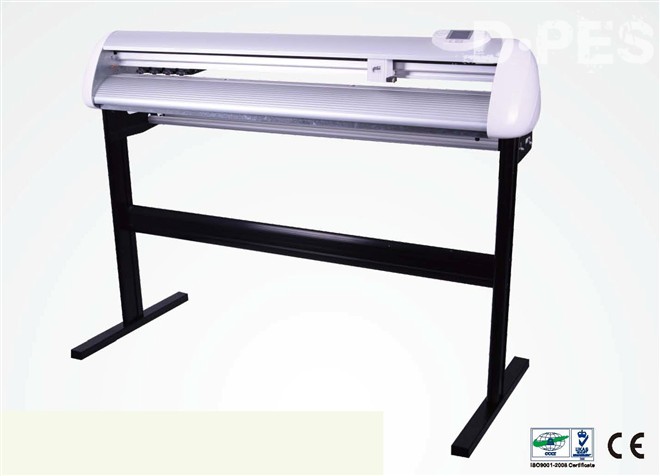

Cutting plotter CT1200H --2012 new model
|
Model
|

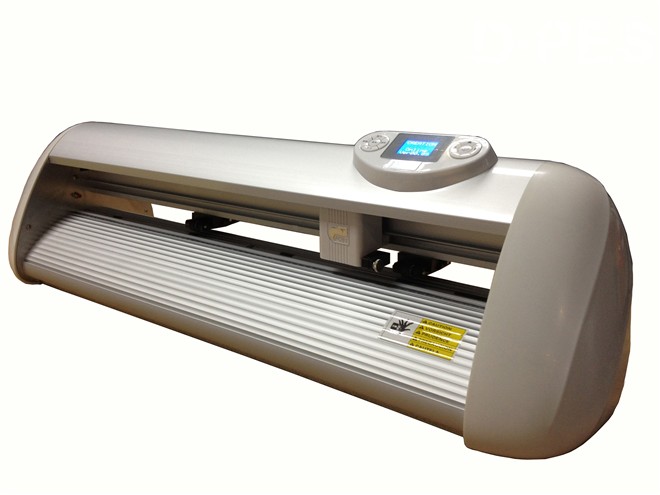

CT630H |
CT1200H |
| Media Way |
M form Bracket or Stand |
Floor stand |
| Driver |
High speed stepping motor, micro-step driver |
| Mainboard |
32-bit CPU, 64MB Memory |
| Maximum paper feed width |
730mm |
1300mm |
| Maximum Cutting width |
630mm |
1200mm |
| Maximum Cutting Speed |
400mm / s |
| Maximum Cutting length |
20000mm <=20 |
| Maximum Cutting thickness |
1mm |
| Cutting force |
0-400g(digital adjustment) |
| Mechanical precision |
0. 05mm |
| Repeatable precision |
< _0. 1mm |
| Plotter Instruction |
DM-PL HP / GL Automatic identification |
| Interface |
USB Port & RS32 Serial Port |
| Power Supply |
AC220V / 110V, 50Hz |
| Size of packing carton |
1045*330*355mm(W/O stand) |
1590*330*410mm |
| 1045*330*410mm(W/ stand) |
| Features |
|
|
|
1: 2012 new model, new exterior
2: 32-bits CPU, 64MB memory
3: Grit roller
4: High-tech mainboard with top quality chips.
5: Little malfunction
|
Accessary:
1 pc x AC Power cord
1 pc x USB cable
1 pc x RS 232 cable
1 pc x Blade holder
3 pcs x blades
1 pc x Pen holder
1 pc x User Manual
1 pc x CD disk
