| Model |

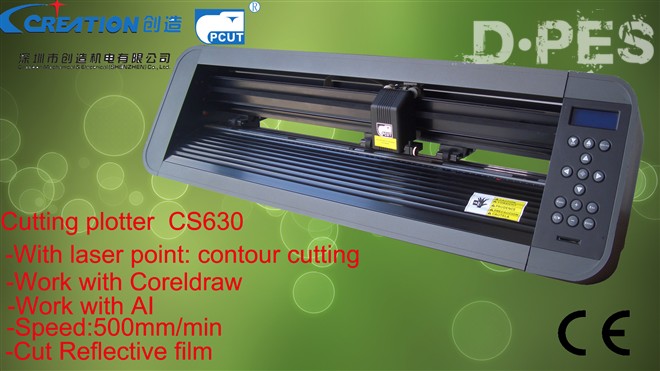

CS630 with laser point |
CS1200 with laser point |
| Media Way |
M bracket or Stand |
Floor Stand |
| Driver |
High speed stepping motor, micro-step driver |
| Mainboard |
32-bit ARM7 CPU , 4MB , High-speed CACHE memory |
| Maximum paper feed width |
730mm |
1300mm |
| Maximum Cutting width |
635mm |
1205mm |
| Maximum Cutting Speed |
500mm / s |
| Maximum Cutting length |
20000mm <=20 |
| Maximum Cutting thickness |
1.0mm |
| Cutting force |
0-500g(digital adjustment) |
| Mechanical precision |
0.05mm |
| Repeatable precision |
< _0. 1mm |
| Type of tool |
Carbide blade |
| Type of Plot pen |
All types diameter 11. 4mm plotter pen |
| Plotter Instruction |
Compatible DM/PL,HP/GL |
| Interface |
USB Port.Serial Port.SD Card.laserpoint |
| Power Supply |
AC220V / 110V, 50Hz |
| Operating environment: |
Temperature: 5_ 35, Relative Humidity: 30% ~70% |
| Size of packing carton |
1045*330*355mm(Without stand) |
1590*330*440mm |
| 1045*330*440mm(With stand) |
